Level 1 — What NCARB Is Really Asking

👉 Which stormwater strategy satisfies the most project goals under real site constraints?

The prompt requires:

1. Peak flow reduction
2. Water-quality treatment
3. Visible green infrastructure
4. A system that still works in clay soils

➡️ That combination points directly to a bioswale with engineered media and underdrain.

Level 2 — Why B Is Correct

B — Bioswale with engineered soil media and underdrain ✅

This strategy works because it provides:

• Visible green infrastructure
• Vegetated filtration for pollutants from parking runoff
• Engineered soil media to improve treatment performance
• An underdrain to allow the system to function even when native soils infiltrate poorly

➡️ It satisfies:

• water-quality improvement
• runoff moderation
• public education / visibility
• poor-soil constraints

A — Dry grass-lined swale ❌

✔ Visible
✔ Can convey runoff

❌ BUT:

• Primarily a conveyance system
• Limited pollutant treatment
• Does not provide the same filtration and engineered performance as a bioswale

➡️ Too weak for the water-quality goal

C — Infiltration basin in native soils ❌

✔ Can reduce runoff and improve water quality in the right conditions

❌ BUT:

• The site has compacted clay soils
• Poor infiltration makes this unreliable or prone to failure

➡️ Wrong match for site conditions

D — Concrete channel ❌

✔ Moves water efficiently

❌ BUT:

• No treatment
• No green infrastructure value
• No educational or ecological benefit

➡️ Opposite of the municipality’s intent

Choose a bioswale with engineered media and underdrain when the problem includes:

• water-quality treatment
• visible green infrastructure
• parking-lot runoff
• poor native infiltration soils

NCARB Decision Rule

If the prompt says:

• Convey runoff quickly → swale or channel may work

If the prompt says:

• Treat runoff + visible GI + poor soils
  ➡️ bioswale with engineered soil and underdrain

• Site Planning and Design Handbook — Thomas H. Russ

Level 1 — Exam Thinking (How to Solve It Fast)

Key phrases:

👉 “reduce potable water use”
👉 “no additional storage or distribution systems”

So the system must:

✔ Use water on-site
✔ Require no mechanical redistribution
✔ Support natural irrigation

➡️ That points to:

👉 Infiltration

Level 2 — Deep Understanding (Stormwater Logic)

D — Infiltration basin (Correct)

• Allows stormwater to percolate into the soil
• Recharges groundwater
• Provides passive irrigation to surrounding vegetation
• Requires no storage tanks or pumps

➡️ Best match for low-tech, passive water reuse

A — Catch basin

❌ Collects and conveys water into storm sewer
➡️ Removes water from site
➡️ No irrigation benefit

B — Detention basin

✔ Controls runoff rate

❌ BUT:

• Temporarily stores and releases water
• Does not retain water for reuse

➡️ Flow control, not reuse

C — Retention basin

✔ Holds water on-site

❌ BUT:

• Stores water in a pond
• Does not distribute water to landscape without systems

➡️ Requires additional systems to be useful for irrigation

Stormwater strategies fall into categories:

• Detention → controls flow rate
• Retention → stores water
• Infiltration → returns water to ground (passive reuse)

👉 For low-tech irrigation without systems:
➡️ Infiltration is best

• Site Planning and Design Handbook — Thomas H. Russ

Level 1 — Exam Thinking (How to Solve It Fast)

This question has two zoning filters:

1. Maximum FAR
2. Maximum buildable footprint from setbacks

A configuration must satisfy both.

Step 1 — Calculate Site Area

300 x 200 = 60,000 sf

Step 2 — Calculate Maximum Total Floor Area from FAR

60,000 x 3.0 = 180,000 sf

So the project cannot exceed:

✅ 180,000 sf total building area

Step 3 — Calculate Maximum Buildable Footprint

Setback is 20 ft on all sides:

• Buildable length:

300 – 40 = 260 ft

• Buildable width:

260 – 160 = 160 ft

So maximum floor plate is:

260 x 160 = 41,600 sf

So each floor must also be:

✅ 41,600 sf or less

Step 4 — Test Each Option

A. 5 stories of 45,000 sf each

Total area:

5 x 45,000 = 225,000 sf

❌ Exceeds FAR limit
❌ Also exceeds max floor plate of 41,600 sf

B. 4 stories of 40,000 sf each

Total area:

4 x 40,000 = 160,000 sf

✅Under FAR limit
✅ Each floor fits within 41,600 sf

C. 6 stories of 24,000 sf each

Total area:

6 x 24,000 = 144,000 sf

✅ Under FAR limit
✅ Each floor fits within 41,600 sf

D. 7 stories of 30,000 sf each

Total area:

7x 30,000 = 210,000 sf

❌ Exceeds FAR limit

E. 3 stories of 50,000 sf each

Total area:

3 x 50,000 = 150,000 sf

A — 5 stories of 45,000 sf

✔ Looks plausible as a mid-rise option

❌ BUT:

• Fails both tests:
  • too much total area
  • too large a floor plate

D — 7 stories of 30,000 sf

✔ Each floor fits the footprint

❌ BUT:

• Total area exceeds FAR limit

➡️ Classic trap: passes footprint, fails FAR

E — 3 stories of 50,000 sf

✔ Total building area is under FAR limit

❌ BUT:

• Floor plate is too large for the setback-defined envelope

➡️ Classic trap: passes FAR, fails footprint

A zoning-compliant building must satisfy all applicable constraints, including:

• Total allowable floor area (FAR)
• Buildable footprint from setbacks

Passing one does not guarantee compliance.

• International Zoning / Land Use Principles
• Site Planning and Design Handbook — Thomas H. Russ

🧠 Level 1 — Exam Thinking (Fast)

Trigger words:

• FEMA Zone AE
• Base Flood Elevation (BFE)
• Floodplain ordinance

👉 These immediately signal:
Regulations override design intent

🧠 Level 2 — Deep Logic

✅ B. Elevate above BFE or provide compliant flood-resistant design

✔ FEMA + local ordinances require:

• Occupied floors above BFE
  OR
• Approved floodproofing strategy

✔ Applies directly to:

• Public gallery (occupied space)
• Storage (valuable contents)

✔ Conflicts with:

• Ground-level program
• Minimal elevation change

👉 This is the governing regulatory requirement

❌ A. Orient building for natural ventilation

✔ Good design strategy
❌ Not code-driven
❌ Not required

👉 Secondary consideration

❌ C. Increase setbacks for stormwater runoff

✔ May relate to zoning or drainage
❌ Not tied to floodplain requirement
❌ Does not address BFE

❌ D. Use flood-resistant materials for exterior walls only

✔ References a real concept

❌ But:

• Flood compliance is NOT just materials
• Must address elevation OR full floodproofing system
• “Exterior walls only” is incomplete

👉 Classic NCARB trap

🔥 What NCARB Is Really Asking

👉 Can you recognize when a regulatory constraint dictates the design response

This is not about:

• optimizing the design

improving performance

1. FEMA Special Flood Hazard Area (Zone AE)

• High-risk flood zone
• Requires compliance with floodplain management regulations

2. Base Flood Elevation (BFE)

• Minimum elevation for:
  • Occupied floors
  • Critical building systems

👉 Drives building section and program placement

3. Floodplain Regulations Override Program Intent

Client wants:

• Ground-floor gallery
• Ground-level storage

👉 Regulations require:

• Elevation
  OR
• Floodproofing

4. Flood-Resistant Design Strategies

• Elevate building above BFE
• Wet floodproofing (non-critical areas)
• Dry floodproofing (limited, regulated use)

5. Overlay Districts Add Additional Requirements

• Coastal resilience overlays often:
  • Increase elevation requirements
  • Restrict ground-level occupancy
  • Require stricter compliance than base code

• FEMA Floodplain Management Requirements
  • Base Flood Elevation (BFE)
  • Flood-resistant construction standards
• IBC (Flood-Resistant Construction Provisions)
  • Elevation and floodproofing requirements
• Building Construction Illustrated (Ching)
  • Site constraints and environmental risks
• Problem Seeking (Peña & Parshall)
  • Programming response to regulatory constraints

Level 1 — What NCARB Is Really Asking

👉 Can you distinguish soil types based on behavior (not just names)?

This is a pattern recognition question:

• Plasticity
• Strength when wet
• Erosion
• Volume change

Level 2 — Why B (Silt) Is Correct

Silt (ML / MH) Characteristics ✅

• Low to slight plasticity
  → “Occasional plasticity” fits perfectly
• Loses strength when saturated
  → Becomes weak and unstable when wet
• Highly erodible
  → Fine particles easily carried by water
  → (Why silt fences exist)
• Minimal shrink–swell behavior
  → Does NOT expand like clay

➡️ This exact combination = classic silt behavior

A — Clay ❌

Clay behaves almost opposite:

• High plasticity
• Strong cohesion
• Significant shrink–swell
• Not easily eroded

➡️ Fails:
❌ “easily eroded”
❌ “no expansion/shrinkage”

C — Organic Soil ❌

• Very compressible
• Spongy / fibrous
• Often high moisture content
• Poor bearing capacity

But:

• Behavior is inconsistent
• Not defined by erosion + low plasticity

➡️ Does not match the given profile

D — Bedrock fragments (gravel/cobble) ❌

• Non-plastic
• High drainage
• Maintains strength when wet

➡️ Opposite of:
❌ “loses strength when saturated”
❌ “easily eroded”

👉 The most tested PA soil distinction:

If you see:

• “easily eroded”
• “loses strength when wet”
• “little to no shrink/swell”

Answer = SILT

• Site Planning and Design Handbook — Thomas H. Russ
• Fundamentals of Building Construction — Allen & Iano

Level 1 — What Is Really Being Asked

👉 “Do you recognize physical signs of flooding and know the FIRST sources to verify risk?”

Clues =

• Erosion channels
• Silt deposition
• Debris lines
• Site depression

➡️ This is classic flood / drainage / watershed behavior

Level 2 — Why the Correct Answers Are Correct

A — FEMA Flood Insurance Rate Maps ✅

• Identifies:
  • Flood zones (100-year / 500-year)
  • Base flood elevations (BFE)
• Debris + sediment = strong flood indicators

➡️ First stop for regulatory flood risk

C — USGS Watershed & Hydrography Maps ✅

• Shows:
  • Watershed boundaries
  • Upstream drainage patterns
  • Flow accumulation paths

➡️ Explains WHY water is reaching the site

E — Topographic Survey ✅

• Confirms:
  • Flow direction
  • Low points / depressions
  • Drainage paths across site

➡️ Required to validate on-site behavior

B — Zoning Ordinance ❌

• Addresses:
  • Use, setbacks, FAR
• ❌ Does NOT evaluate environmental risk

D — Geotechnical Boring Logs ❌ (Trap Answer)

• Useful for:
  • Bearing capacity
  • Soil composition

❌ BUT:

• Comes after feasibility
• NCARB sequence:
  Mapping → topo → THEN geotech

F — Wildlife Habitat Maps ❌

• Used for:
  • Endangered species
  • Ecological protection

❌ No indicators of habitat concerns in the prompt

👉 Physical site clues (erosion, debris, sediment) =
Hydrology problem FIRST, not soil or zoning

Decision Hierarchy

1. Observe site indicators
2. Confirm with mapping tools (FEMA / USGS)
3. Verify with topography
4. THEN move to soils, zoning, design

• Site Planning and Design Handbook — Thomas H. Russ
• FEMA Flood Mapping Guidelines

Level 1 — What NCARB Is Really Asking

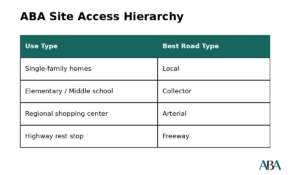

👉 Which road classification best supports a school entrance?

This is a hierarchy question. The best answer must balance:

• safety
• traffic capacity
• neighborhood impact
• environmental constraints

Level 2 — Why B Is Correct

B — Collector road ✅

A collector road is the best fit because it provides:

• More capacity than a local street
• Lower speeds than an arterial
• Better ability to manage:
  • bus traffic
  • parent drop-off
  • emergency access
• Good connection to surrounding neighborhoods for students arriving on foot

➡️ It is the best balance of traffic function + safety

A — Arterial road ❌

✔ High visibility
✔ Higher traffic capacity

❌ BUT:

• Traffic speeds are too high
• Heavy traffic creates conflicts for:
  • children
  • pedestrian crossings
  • school entry operations

➡️ Visibility does not outweigh safety risk

C — Local residential street ❌

✔ Lower speeds
✔ Sidewalks may help pedestrian comfort

❌ BUT:

• Too little traffic capacity for school peak loads
• Would push school traffic into neighborhood streets
• Conflicts with requirement to minimize disruption to surrounding homes

➡️ Safer speed, but wrong capacity

D — Wetland edge ❌

❌ Environmentally constrained
❌ Likely prohibited or heavily restricted
❌ Incompatible with safe and efficient access planning

➡️ Not a realistic or appropriate access location

For schools and similar civic uses:

• Arterials = too fast / too intense for primary access
• Locals = too small for major peak traffic
• Collectors = best balance of access, safety, and capacity

NCARB Decision Rule

When choosing access:

1. Avoid environmental constraints
2. Avoid overloading local streets
3. Avoid high-speed roads for child-focused entrances
4. Use the road type that best balances capacity + safety

➡️ Usually the collector

• Site Planning and Design Handbook — Thomas H. Russ
• Problem Seeking — Peña & Parshall

This option is the only one that satisfies all three project goals simultaneously:

1. Maximize student safety

• Separating bus traffic from parent vehicles reduces conflict points
• Pedestrian access from the residential (low-traffic) side is safer for walking students

2. Separate vehicle types

• Dedicated loops =
  • predictable movement
  • fewer crossings
  • clearer wayfinding

3. Minimize congestion

• Splitting traffic distributes load across the site
• Avoids bottlenecks at a single entry point

👉 This reflects standard school site planning best practices

A. Locate both bus and parent drop-off along the main road

❌ Creates:

• Traffic stacking on a high-traffic road
• Conflicts between buses and cars
• Unsafe conditions for students

👉 Violates all three goals

C. Combine pedestrian and bus circulation to simplify layout

❌ Dangerous design:

• Pedestrians interacting directly with buses
• High risk for children

👉 Simplification at the expense of safety

D. Locate the main entrance along the busiest road for visibility

❌ Prioritizes visibility over safety:

• Encourages access from the most dangerous edge of the site
• Increases exposure to traffic hazards

👉 Site diagrams = movement + safety

• Separate traffic types
• Protect pedestrians
• Use lower-speed edges for access

• Site Planning and Design Handbook — Traffic separation and site organization

🧠 Level 1 — Exam Thinking (Fast)

Look for the answer that addresses:

1. The drainage failure
2. The structural consequence
3. The climate risk
4. The proposed added roof load

The reports show:

• ponding water
• undersized drains
• no overflow system
• localized deflection
• new rooftop equipment
• heavy-rain coastal climate

👉 This is not just a membrane problem.
👉 It is a drainage + structural performance problem.

So the best answer must solve all of those together.

🧠 Level 2 — Deep Logic

✅ C. Install additional internal roof drains, provide a secondary overflow drainage system, and reinforce localized structural areas

✔ Directly addresses the primary cause of roof distress:

• internal drains are undersized
• ponding occurs after storms
• no overflow protection exists

✔ Responds to code/life safety implications:

• public assembly occupancy below increases the consequence of roof drainage failure
• secondary overflow drainage is a critical protection strategy

✔ Responds to observed structural effects:

• localized joist deflection indicates the structure is already being affected by retained water loads
• reinforcing localized areas is more feasible than full replacement

✔ Aligns with project constraints:

• avoids full structural replacement
• targeted intervention reduces disruption to interior spaces

👉 This is the only answer that addresses drainage capacity, overflow protection, and structural implications together.

❌ A. Replace the roof membrane and increase insulation to improve durability during storm events

✔ Helps roof durability
✔ Could be part of the renovation

❌ But it does not solve the governing issue:

• undersized drains remain
• ponding remains
• no overflow drainage remains
• structural deflection remains

👉 This treats the surface symptom, not the cause.

❌ B. Add tapered insulation to improve drainage slope while maintaining the existing internal drain system

✔ Tapered insulation can help reduce ponding
✔ Sounds plausible and sophisticated

❌ But the reports specifically state:

• existing drains are undersized for current rainfall intensity
• no secondary overflow exists

So even with better slope:

• the system still lacks enough drainage capacity
• the roof still lacks overflow protection in a high-rain climate

👉 Strong distractor, but incomplete.

❌ D. Relocate rooftop mechanical units to reduce structural loading during storm events

✔ Reduces some roof load
✔ May help locally

❌ But it does not address the main failure mechanism:

• stormwater accumulation
• inadequate drainage sizing
• lack of overflow
• membrane deterioration at drains

👉 The problem is not primarily the mechanical units.
It is the roof drainage system and resulting water load.

🔥 What NCARB Is Really Asking

👉 Can you identify the governing failure pattern from multiple reports?

This question is testing whether you can connect:

• roof ponding
• drain sizing
• missing overflow protection
• structural deflection
• climate severity

And then choose the recommendation that solves the whole system, not just one symptom.

1. Ponding Water Is a Performance and Structural Warning Sign

Ponding on low-slope roofs can lead to:

• membrane deterioration
• increased dead load from retained water
• worsening deflection
• progressive drainage failure

👉 Ponding is not just a maintenance issue.

2. Undersized Internal Roof Drains Can Govern the Recommendation

If the drainage report says drains are undersized for current rainfall intensity:

• the roof drainage system is fundamentally inadequate
• replacing finishes alone will not solve the problem

3. Overflow Drainage Is Critical on Low-Slope Roofs

Secondary drainage or overflow protection is especially important when:

• internal drains are used
• rainfall intensity is high
• public occupancy is below
• drain blockage or overload could create dangerous loading

4. Localized Deflection Means the Structure Is Already Responding to Excess Water Load

Structural deflection between joists suggests:

• water retention is increasing roof loading
• the framing may need targeted reinforcement
• drainage correction alone may not be enough

5. Best Recommendation = Root Cause + Consequence

The strongest answer addresses:

• the cause → inadequate drainage capacity
• the safety backup → no overflow drainage
• the consequence → localized structural distress

• Fundamentals of Building Construction (Allen & Iano)
  • Roof drainage systems
  • Low-slope roof performance
  • Structural implications of water retention
• Building Construction Illustrated (Ching)
  • Roof drainage concepts
  • Internal drains and overflow provisions
• Architectural Graphic Standards
  • Roof drainage design considerations
  • Overflow drainage and low-slope roof detailing

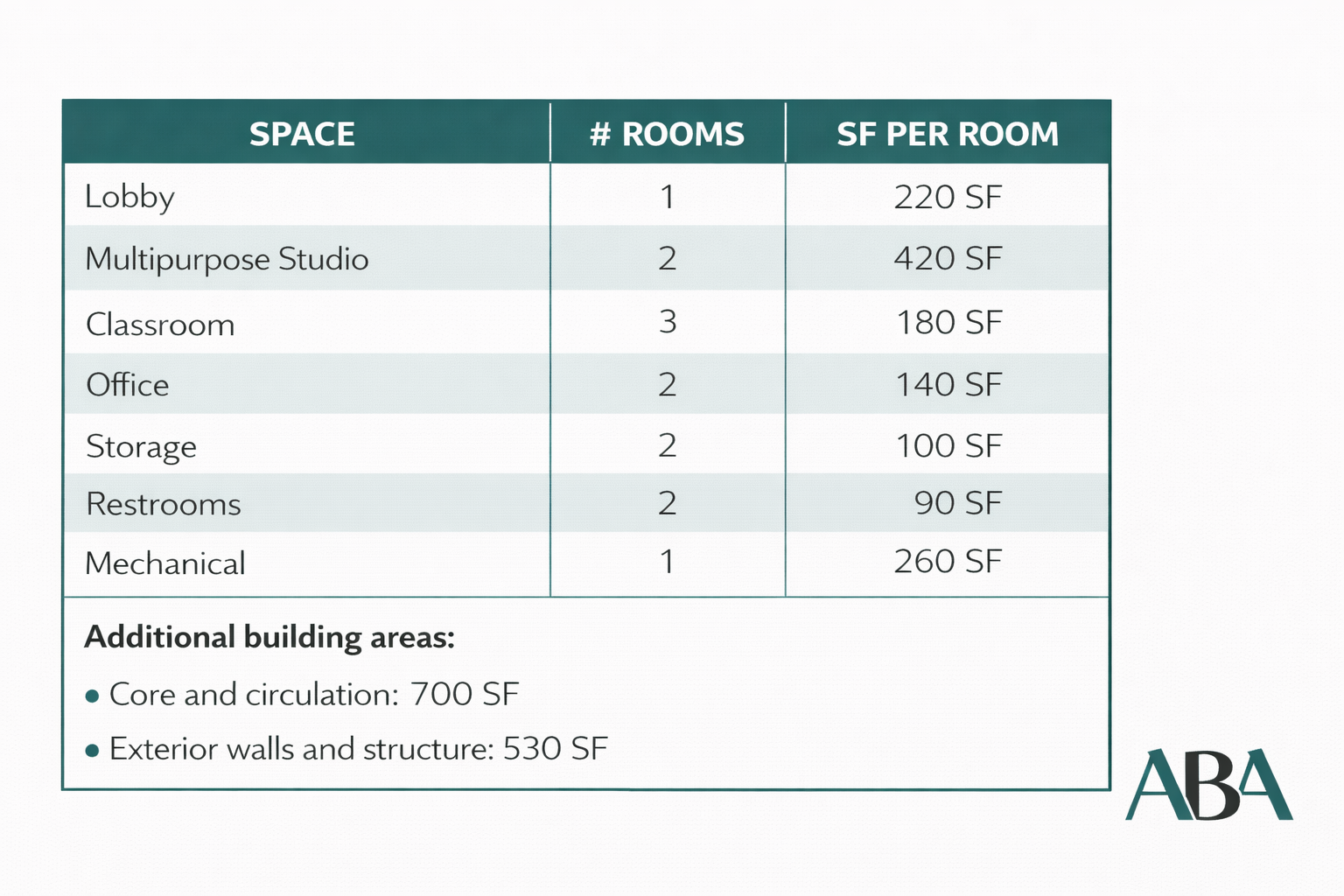

🧠 Level 1 — Exam Thinking

Efficiency improves when:
👉 non-usable area decreases
👉 usable area increases (without increasing gross area)

🧠 Evaluate the Options

✅ A. Reduce the amount of core and circulation space

✔ Directly reduces non-usable area
✔ Most immediate impact on efficiency ratio
✔ Targets the biggest inefficiency drivers

⚠️ B. Reconfigure the layout to eliminate redundant circulation paths

✔ Improves efficiency
❌ But indirect approach (design strategy, not direct reduction)

👉 This is the trap

❌ C. Increase the size of classrooms

🚫 Increases usable space but:

• May increase overall program requirements
• Does not inherently improve efficiency

❌ D. Combine storage and mechanical spaces

🚫 Minimal impact
🚫 Does not significantly affect overall efficiency

🔥 What NCARB Is Really Testing

👉 Do you recognize that:

Core + circulation = primary non-usable area

And:

👉 The most direct way to improve efficiency is to reduce it

Overall Efficiency = Usable Area / Gross Area

Best improvement strategy:
👉 Reduce non-usable space first

• Problem Seeking (Peña & Parshall)
  • Programming concepts: assignable vs non-assignable space
  • Efficiency and building area relationships
• Architect’s Studio Companion
  • Space planning and building efficiency considerations
• Fundamentals of Building Construction (Allen & Iano)
  • Impact of structure and building systems on usable space
